IQ Products: Modulators / Demodulators
Orion Microwave Inc. offers Diode based IQ products, which covers frequency up to 18GHz: Bi Phase, IQ modulators/Demodulators, QPSK...
|
Model |
Frequency (GHz) |
LO Drive |
C.L. |
Img Rej. |
Input IP3 | ||
|
|
RF |
LO |
IF |
(dBm) |
(dB) |
(dBm) |
(dBm) |
|
IQ0103C-X |
1.4-2.8 |
1.4-2.8 |
DC-0.5 |
+9 to +17 |
5.9 |
22 |
+13 to +21 |
|
IQ0103S-X |
1.4-2.8 |
1.4-2.8 |
DC-0.5 |
+9 to +17 |
5.9 |
22 |
+13 to +21 |
|
IQ0204C-X |
2.0-4.0 |
2.0-4.0 |
DC-0.5 |
+9 to +17 |
5.9 |
26 |
+13 to +21 |
|
IQ0204S-X |
2.0-4.0 |
2.0-4.0 |
DC-0.5 |
+9 to +17 |
5.9 |
26 |
+13 to +21 |
|
IQ0306C-X |
3.0-6.0 |
3.0-6.0 |
DC-0.4 |
+9 to +17 |
6.5 |
27 |
+13 to +21 |
|
IQ0306S-X |
3.0-6.0 |
3.0-6.0 |
DC-0.4 |
+9 to +17 |
6.5 |
27 |
+13 to +21 |
|
IQ0510C-X |
5.6-10.2 |
5.6-10.2 |
DC-0.5 |
+10 to +17 |
5.8 |
29 |
+14 to +21 |
|
IQ0510S-X |
5.6-10.2 |
5.6-10.2 |
DC-0.5 |
+10 to +17 |
5.8 |
29 |
+14 to +21 |
|
IQ0614C-X |
5.5-13.5 |
5.5-13.5 |
DC-0.5 |
+10 to +17 |
5.8 |
25 |
+14 to +21 |
|
IQ0614S-X |
5.5-13.5 |
5.5-13.5 |
DC-0.5 |
+10 to +17 |
5.8 |
25 |
+14 to +21 |
|
IQ0918C-X |
9.0-18.0 |
9.0-18.0 |
DC-0.3 |
+10 to +17 |
6.5 |
25 |
+14 to +21 |
|
IQ0918S-X |
9.0-18.0 |
9.0-18.0 |
DC-0.3 |
+10 to +17 |
6.5 |
25 |
+14 to +21 |
Notes:
1) Replace -X with drive level (dBm):
|
B |
C |
D |
E |
|
+9 or +10dBm |
+13 dBm |
+17 dBm |
+21 dBm |
2) Image Rejection is measured with an external 90o IF Hybrid.
3) RF Bandwidth is about 25%. Contact us on other BW requirements.
4) IQ modulators are offered on Carrier (C), SMA Connectorzied (S) and Surface Mount (SM). Custom performance & packages are available, contact us for more info.
Copyrighted @2007 Orion Microwave Inc. All right reserved.

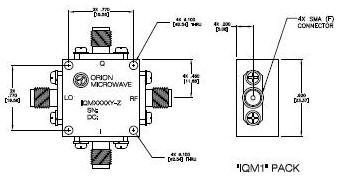

SMA Connectorized Package
Carrier Package
